Luminon arranges charts on a grid. Each dashboard has columns and rows, and every chart is placed using XY coordinates inside that grid. Horizontal placement is controlled with `x`, vertical placement with `y`, and each visual size is defined with column and row spans to indicate how much space it occupies.
Beyond layout, Luminon supports visual themes. A theme can apply to the whole dashboard or to a specific chart, which makes it easy to keep a consistent look or highlight one visual without changing the rest.

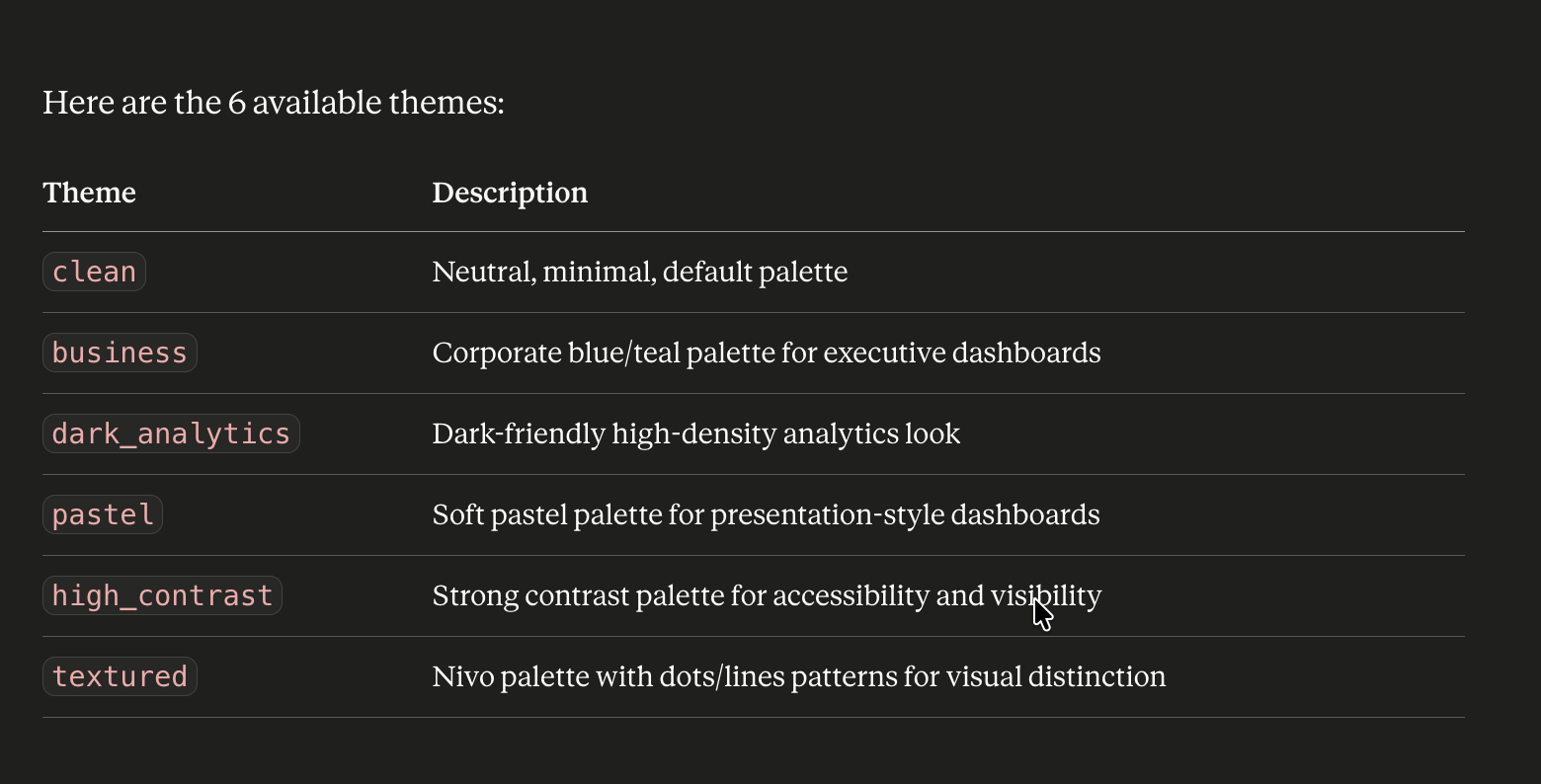

List available themes
Available themes that can be applied to the dashboard or to a chart.

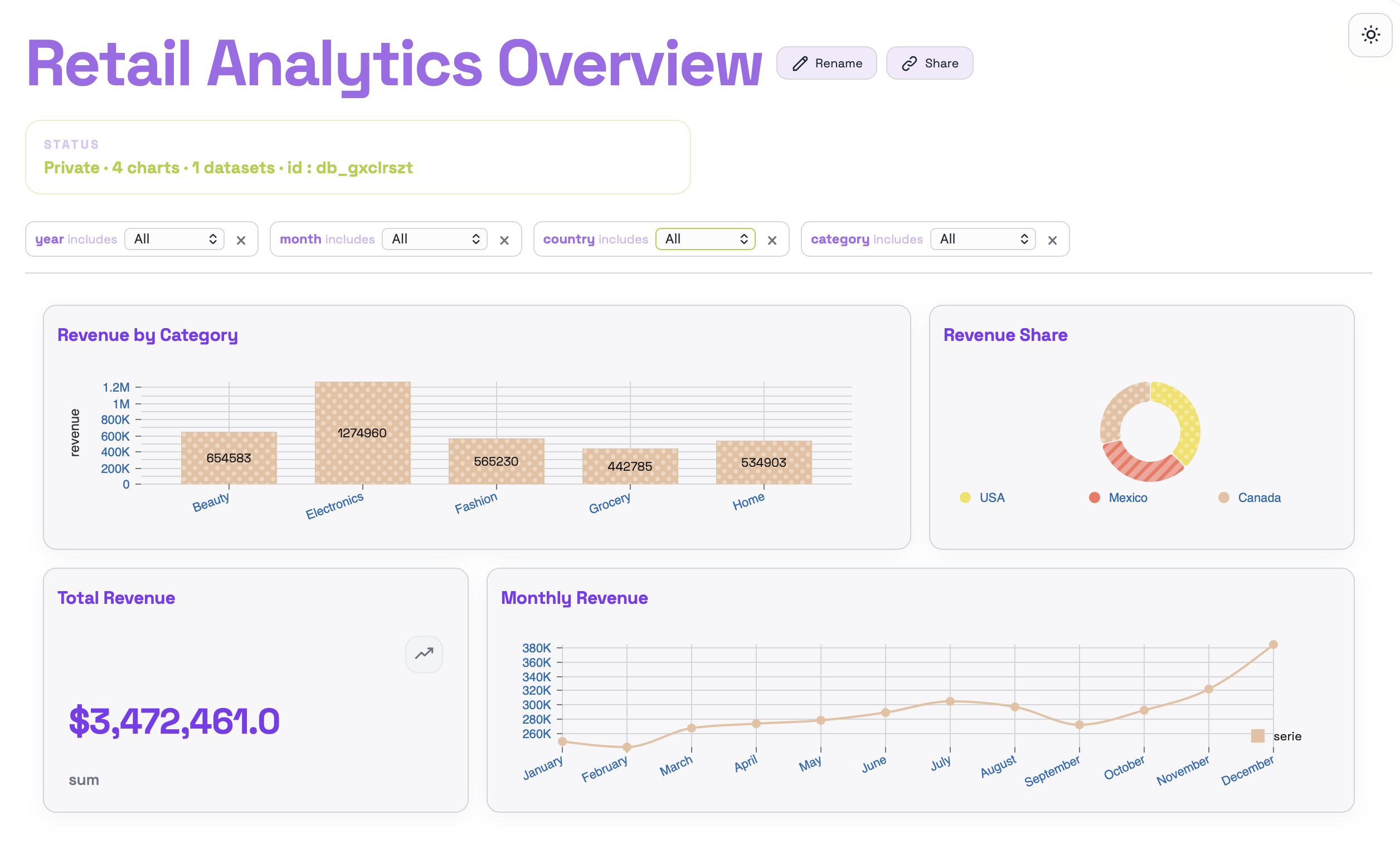

Change the dashboard 'Retail Analytics Overview' to the textured theme
The dashboard after applying the textured theme.

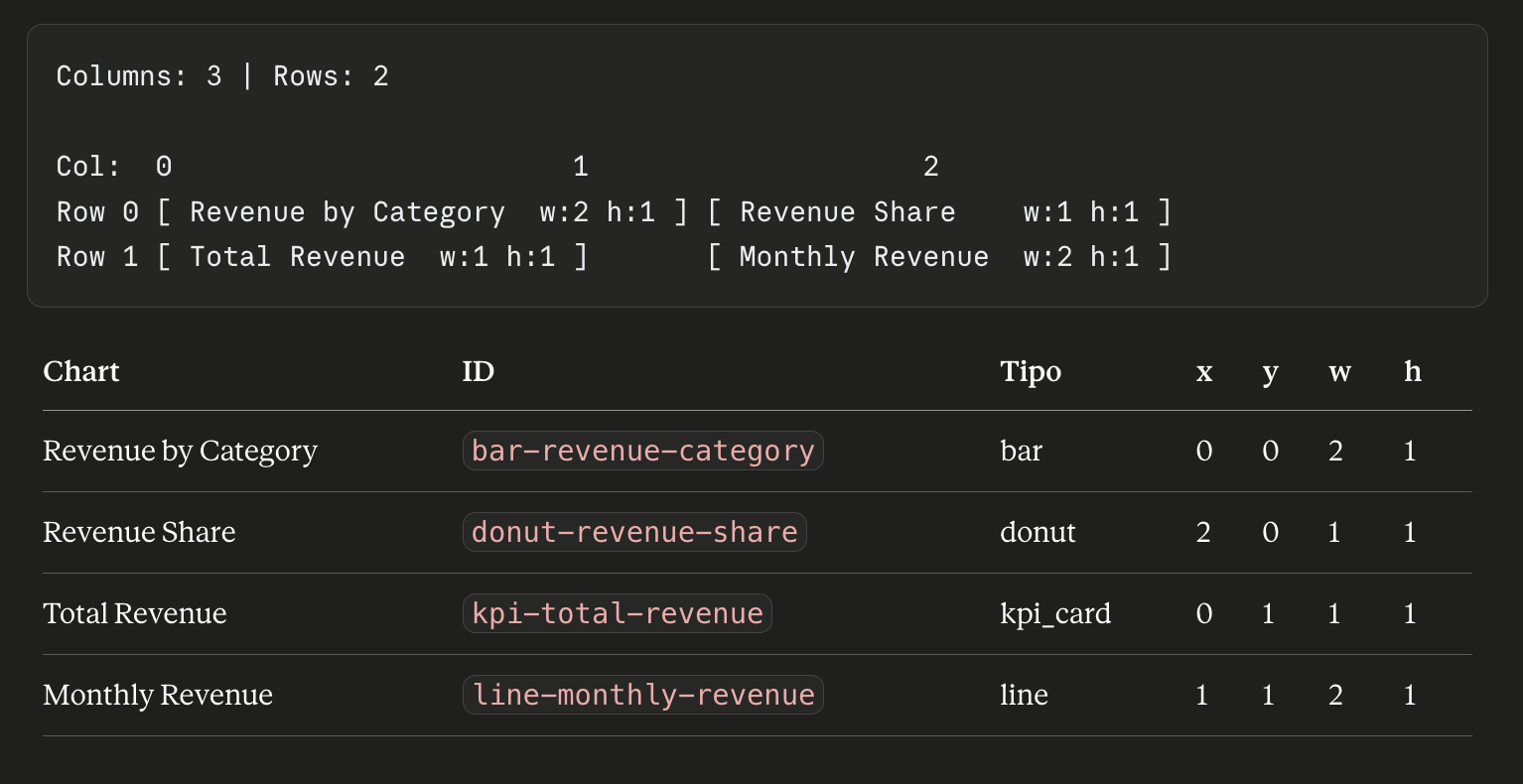

The default grid in Luminon for this dashboard has 3 columns and 2 rows. That means the workspace is split into a rectangular grid where the `x` and `y` coordinates place each chart inside that grid: `x` is the starting column and `y` is the starting row. The span tells you how many columns (`w`) and rows (`h`) each chart occupies.
Show me the layout of 'Retail Analytics Overview'
Dashboard layout with coordinates and spans.
Change the dashboard 'Retail Analytics Overview' to the pastel theme and the chart 'Revenue Share' to clean
Dashboard and chart with themes applied separately.
Now we can inspect the current state of our dashboard with `Show the details of 'Retail Analytics Overview'`.
Show the details of `Retail Analytics Overview`
Here are the details for the Retail Analytics Overview dashboard:
General Information
- Dashboard ID: db_im2n9lvx
- Name: Retail Analytics Overview
- Theme Preset: pastel (with individual chart overrides)
- Status: Active
- Total Charts: 4
- Linked Dataset: ds_co2zzpnf (144 rows, 21 columns)
Pages
┌───────────┬──────────┬──────────┬─────────────┐
│ Page ID │ Name │ Slug │ Chart Count │
├───────────┼──────────┼──────────┼─────────────┤
│ page_main │ Overview │ overview │ 4 │
└───────────┴──────────┴──────────┴─────────────┘
Charts (Overview Page)
1. Revenue by Category (bar-revenue-category)
- Type: Bar
- Individual Theme: pastel (recently updated from dark_analytics)
2. Revenue Share (donut-revenue-share)
- Type: Donut
- Individual Theme: clean
3. Monthly Revenue (line-monthly-revenue)
- Type: Line
4. Total Revenue (kpi-total-revenue)
- Type: KPI Card
Active Filters
- Year (year)
- Month (month)
- Country (country)
- Category (category)
Dataset Schema (ds_co2zzpnf)
The dataset contains the following key metrics and dimensions:
- Dimensions: year, month, country, channel, category, product, customer_segment.
- Metrics: units_sold, revenue, profit, marketing_spend, website_visits, conversion_rate, avg_order_value, customer_satisfaction, temperature, competitor_price_index.
